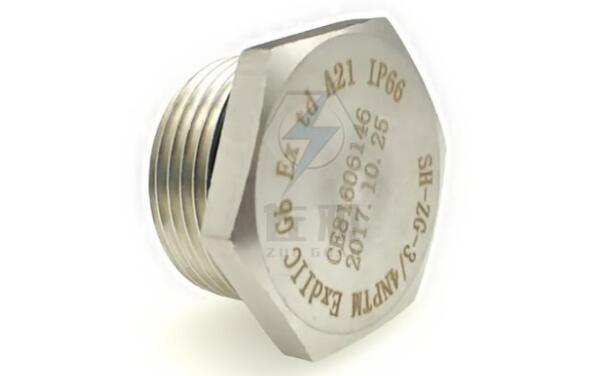

金属闷盖，尼龙闷盖，堵头，盲塞，丝堵
螺纹规格：公制MG牙，德制PG牙，英制G牙，美制NPT牙。
产品材质:采用UL认可之PA66尼龙制成.不锈钢304,316等，黄铜镀镍等材质
工作温度:-40°C至100°C,短时可达120°C.
产品用途:填平预留孔,已达到美观作用,可防水,耐酸碱,耐腐蚀等.
可选配件：锁紧螺母，防水密封垫（配合可达IP68防护）。
| 规格型号 |
规格螺纹 |
螺纹外径 |
扳手尺寸 |
螺纹长度 |
总长度 |
包装单位 |
| article no |
thread
dimension |
AG
mm |
wrech size
mm |
GL
mm |
H
mm |
packet units |
| PJ-SDEX-M10 |
M10*1.0 |
10 |
12 |
9 |
12 |
100 |
| PJ-SDEX-M12 |
M12*1.5 |
12 |
14 |
9 |
12 |
100 |
| PJ-SDEX-M14 |
M14*1.5 |
14 |
16 |
9 |
12 |
100 |
| PJ-SDEX-M16 |
M16*1.5 |
16 |
18 |
9 |
12 |
100 |
| PJ-SDEX-M18 |
M18*1.5 |
18 |
20 |
9 |
12 |
100 |
| PJ-SDEX-M20 |
M20*1.5 |
20 |
22 |
12 |
15 |
50 |
| PJ-SDEX-M22 |
M22*1.5 |
22 |
24 |
12 |
15 |
50 |
| PJ-SDEX-M24 |
M24*1.5 |
24 |
27 |
12 |
15 |
50 |
| PJ-SDEX-M25 |
M25*1.5 |
25 |
28 |
12 |
15 |
50 |
| PJ-SDEX-M27 |
M27*2.0 |
27 |
30 |
12 |
15 |
50 |
| PJ-SDEX-M30 |
M30*2.0 |
30 |
34 |
12 |
15 |
50 |
| PJ-SDEX-M32 |
M32*1.5 |
32 |
36 |
15 |
19 |
25 |
| PJ-SDEX-M33 |
M33*2.0 |
33 |
36 |
15 |
19 |
25 |
| PJ-SDEX-M36 |
M36*2.0 |
36 |
40 |
15 |
19 |
25 |
| PJ-SDEX-M40 |
M40*1.5 |
40 |
45 |
15 |
19 |
25 |
| PJ-SDEX-M42 |
M42*1.5 |
42 |
45 |
15 |
19 |
25 |
| PJ-SDEX-M48 |
M48*2.0 |
48 |
52 |
15 |
19 |
25 |
| PJ-SDEX-M50 |
M50*1.5 |
50 |
55 |
15 |
19 |
10 |
| PJ-SDEX-M56 |
M56*2.0 |
56 |
60 |
15 |
19 |
10 |
| PJ-SDEX-M63 |
M63*1.5 |
63 |
70 |
18 |
24 |
10 |
| PJ-SDEX-M64 |
M64*1.5(2) |
64 |
70 |
18 |
24 |
10 |
| PJ-SDEX-M72 |
M72*1.5(2) |
72 |
80 |
18 |
24 |
10 |
| PJ-SDEX-M75 |
M75*1.5(2) |
75 |
90 |
18 |
24 |
5 |
| PJ-SDEX-M78 |
M78*1.5(2) |
78 |
90 |
18 |
24 |
5 |
| PJ-SDEX-M80 |
M80*1.5(2) |
80 |
90 |
18 |
24 |
5 |
| PJ-SDEX-M88 |
M88*1.5(2) |
88 |
100 |
18 |
24 |
5 |
| PJ-SDEX-M90 |
M90*1.5(2) |
90 |
100 |
18 |
24 |
2 |
| PJ-SDEX-M100 |
M100*1.5(2) |
100 |
110 |
20 |
26 |
2 |
| PJ-SDEX-M110 |
M110*1.5(2) |
110 |
122 |
20 |
26 |
2 |
| PJ-SDEX-M120 |
M120*1.5(2) |
120 |
132 |
20 |
26 |
2 |
| PJ-SDEX-M130 |
M130*1.5(2) |
130 |
145 |
20 |
26 |
2 |
| 规格型号 |
规格螺纹 |
螺纹外径 |
扳手尺寸 |
螺纹长度 |
总长度 |
包装单位 |
| article no |
thread
dimension |
AG
mm |
wrech size
mm |
GL
mm |
H
mm |
packet units |
| PJ-SDEX-PG7 |
PG7 |
12.5 |
15 |
9 |
12 |
100 |
| PJ-SDEX-PG9 |
PG9 |
15.2 |
18 |
9 |
12 |
100 |
| PJ-SDEX-PG11 |
PG11 |
18.6 |
21 |
9 |
12 |
100 |
| PJ-SDEX-PG13.5 |
PG13.5 |
20.4 |
23 |
12 |
15 |
100 |
| PJ-SDEX-PG16 |
PG16 |
22.5 |
26 |
12 |
15 |
50 |
| PJ-SDEX-PG21 |
PG21 |
28.3 |
32 |
12 |
15 |
50 |
| PJ-SDEX-PG29 |
PG29 |
37 |
40 |
12 |
15 |
50 |
| PJ-SDEX-PG36 |
PG36 |
47 |
50 |
12 |
15 |
50 |
| PJ-SDEX-PG42 |
PG42 |
54 |
58 |
15 |
19 |
20 |
| PJ-SDEX-PG48 |
PG48 |
59.3 |
65 |
18 |
24 |
10 |
|
|
|
|
|
|
|
| PJ-SDEX-G3/8 |
G3/8 |
16.66 |
20 |
9 |
12 |
100 |
| PJ-SDEX-G1/2 |
G1/2 |
20.99 |
24 |
12 |
15 |
100 |
| PJ-SDEX-G3/4 |
G3/4 |
26.44 |
30 |
12 |
15 |
100 |
| PJ-SDEX-G1 |
G1 |
33.24 |
38 |
12 |
15 |
100 |
| PJ-SDEX-G1-1/4 |
G1-1/4 |
41.91 |
46 |
12 |
15 |
50 |
| PJ-SDEX-G1-1/2 |
G1-1/2 |
47.8 |
52 |
15 |
19 |
50 |
| PJ-SDEX-G2 |
G2 |
59.61 |
65 |
15 |
19 |
20 |
| PJ-SDEX-G2-1/2 |
G2-1/2 |
75.18 |
80 |
18 |
24 |
10 |
| PJ-SDEX-G3 |
G3 |
87.88 |
95 |
20 |
26 |
5 |
|
|
|
|
|
|
|
| PJ-SDEX-NPT3/8 |
NPT3/8 |
16.65 |
20 |
9 |
12 |
100 |
| PJ-SDEX-NPT1/2 |
NPT1/2 |
20.85 |
24 |
12 |
15 |
100 |
| PJ-SDEX-NPT3/4 |
NPT3/4 |
26.3 |
30 |
12 |
15 |
100 |
| PJ-SDEX-NPT1 |
NPT1 |
33.15 |
38 |
12 |
15 |
100 |
| PJ-SDEX-NPT1-1/4 |
NPT1-1/4 |
41.85 |
46 |
12 |
15 |
50 |
| PJ-SDEX-NPT1-1/2 |
NPT1-1/2 |
47.75 |
52 |
15 |
19 |
50 |
| PJ-SDEX-NPT2 |
NPT2 |
59.55 |
65 |
15 |
19 |
20 |
| PJ-SDEX-NPT2-1/2 |
NPT2-1/2 |
72.3 |
80 |
18 |
24 |
10 |
| PJ-SDEX-NPT3 |
NPT3 |
87.95 |
95 |
20 |
26 |
5 | |
详细介绍
