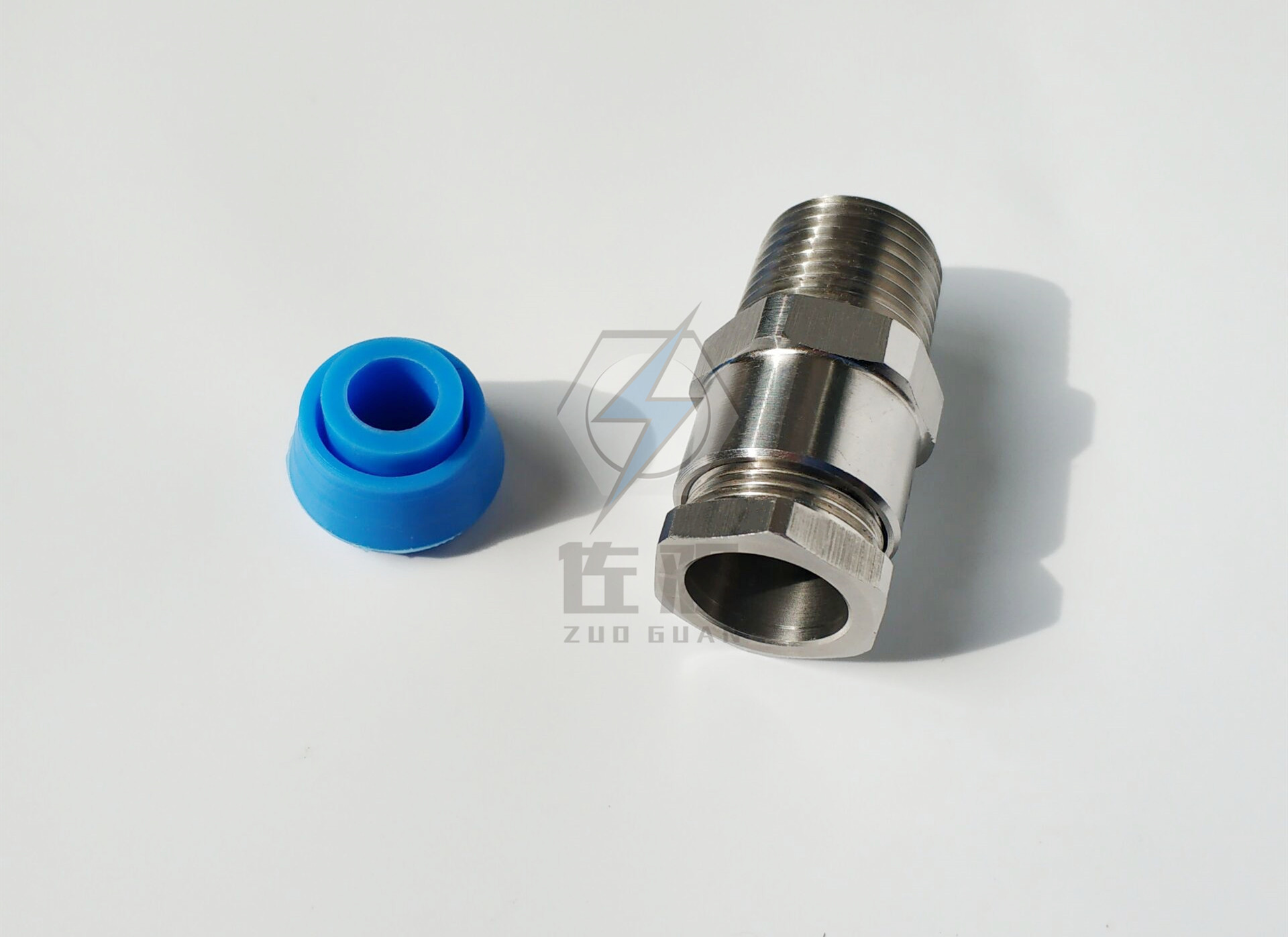

A2F硅胶夹紧式防爆填料函 符合标准:GB3836.1 、 GB3836.2、GB/T3667.1-1995 材质:不锈钢、黄铜、黄铜镀镍(化学镀) 密封材料:特制热塑性橡胶 防护等级:IP66, IP68 防爆等级:Exd IICGb, Exe IICGb /EX tDA21 持续工作温度:-40° to +100°或 -70° to +200° 适用电缆类型:非铠装电缆 密封方法:位移式密封 密封区域:密封区域 对电缆的外护套进防水密封作用 可选附件:转接头、接地片、密封圈、螺母、菊花垫片、护套
型号Item No. |
适用电缆 |
内层橡胶 |
外层橡胶 |
螺纹长度 |
配套螺母 |
接合长度 |
板手 |
包装 |
Cable |
with |
without |
Thread |
上限板厚 |
Joint |
Spanner |
Std.Pkg. |
Range |
inlet |
inlet |
Length |
+Nut Max |
Length |
SW |
pcs |
Φ |
E1 |
E2 |
L1 |
platethick |
H |
A/F |
|
公制螺纹 M |
A2F-M10×1.0-6 |
1.5-6.0 |
1.5-3 |
3-6 |
7 |
≤3.5 |
20 |
14 |
100PCS |
A2F-M12×1.5-8 |
2-8 |
2-5 |
5-8 |
7 |
≤3.5 |
121 |
18 |
A2F-M16×1.5-11 |
4-11 |
4-7 |
7-11 |
7 |
≤3.5 |
25 |
20 |
A2F-M18×1.5-11 |
4-11 |
4-7 |
7-11 |
7 |
≤3.5 |
25 |
22 |
A2F-M20×1.5-14 |
5-14 |
5-9 |
9-14 |
8 |
≤4.5 |
29 |
24 |
A2F-M22×1.5-14 |
5-14 |
5-9 |
9-14 |
8 |
≤4.5 |
29 |
26 |
A2F-M24×1.5-20 |
11-20 |
11-16 |
16-20 |
9 |
≤4.5 |
30 |
30 |
A2F-M25×1.5-20 |
11-20 |
11-16 |
16-20 |
9 |
≤4.5 |
30 |
30 |
A2F-M27×1.5-20 |
11-20 |
11-16 |
16-20 |
9 |
≤4.5 |
30 |
30 |
50PCS |
A2F-M30×2.0-25 |
15-25 |
15-20 |
20-25 |
11 |
≤5.5 |
32 |
36 |
A2F-M32×1.5-25 |
15-25 |
15-20 |
20-25 |
11 |
≤5.5 |
32 |
36 |
A2F-M33×2.0-25 |
15-25 |
15-20 |
20-25 |
11 |
≤5.5 |
32 |
36 |
A2F-M36×2.0-25 |
15-25 |
15-20 |
20-25 |
11 |
≤5.5 |
32 |
40 |
5PCS |
A2F-M40×1.5-32 |
20-32 |
20-26 |
26-32 |
11 |
≤5.5 |
35 |
44 |
A2F-M50×1.5-42 |
31-42 |
31-35 |
35-42 |
11 |
≤5.5 |
39 |
58 |
A2F-M63×1.5-54 |
41-54 |
41-54 |
46-54 |
14 |
≤8.5 |
40 |
68 |
A2F-M72×2.0-65 |
54-65 |
54-58 |
58-65 |
15 |
≤9.5 |
47 |
81 |
1PCS |
A2F-M75×1.5-65 |
54-65 |
54-58 |
58-65 |
15 |
≤9.5 |
47 |
81 |
A2F-M85×1.5-77 |
65-77 |
65-70 |
70-77 |
15 |
≤9.5 |
49 |
96 |
A2F-M90×1.5-77 |
65-77 |
65-70 |
70-77 |
15 |
≤9.5 |
49 |
96 |
A2F-M100×1.5-89 |
77-89 |
77-81 |
81-89 |
20 |
≤13.5 |
50 |
110 |
A2F-M110×1.5-101 |
89-98 |
89-93 |
93-98 |
20 |
≤13.5 |
59 |
130 |
A2F-M120×1.5-113 |
101-110 |
101-106 |
106-110 |
20 |
≤13.5 |
59 |
130 |
A2F-M125×1.5-113 |
101-110 |
101-106 |
106-110 |
20 |
≤13.5 |
59 |
130 |
A2F-M150×2.0-130 |
120-130 |
120-125 |
125-130 |
20 |
≤13.5 |
59 |
160 |
德制螺纹 PG |
A2F-PG7-8 |
2-8 |
2-5 |
5-8 |
7 |
≤3.5 |
121 |
18 |
100PCS |
A2F-PG9-11 |
4-11 |
4-7 |
7-11 |
7 |
≤3.5 |
25 |
20 |
A2F-PG11-11 |
4-11 |
4-7 |
7-11 |
7 |
≤3.5 |
25 |
22 |
A2F-PG13.5-14 |
5-14 |
5-9 |
9-14 |
8 |
≤4.5 |
29 |
24 |
A2F-PG16-14 |
5-14 |
5-9 |
9-14 |
8 |
≤4.5 |
29 |
26 |
A2F-PG21-20 |
11-20 |
11-16 |
16-20 |
9 |
≤4.5 |
30 |
30 |
A2F-PG29-32 |
20-32 |
20-26 |
26-32 |
11 |
≤5.5 |
35 |
44 |
50PCS |
A2F-PG36-42 |
31-42 |
31-35 |
35-42 |
11 |
≤5.5 |
39 |
58 |
A2F-PG42-42 |
31-42 |
31-35 |
35-42 |
11 |
≤5.5 |
39 |
58 |
A2F-PG48-54 |
41-54 |
41-54 |
46-54 |
14 |
≤8.5 |
40 |
68 |
美制螺纹 NPT |
A2F-NPT1/4-8 |
2-8 |
2-5 |
5-8 |
7 |
≤3.5 |
21 |
18 |
100PCS |
A2F-NPT3/8-11 |
4-11 |
4-7 |
7-11 |
7 |
≤3.5 |
25 |
22 |
A2F-NPT1/2-14 |
5-14 |
5-9 |
9-14 |
8 |
≤4.5 |
29 |
24 |
A2F-NPT3/4-20 |
11-20 |
11-16 |
16-20 |
9 |
≤4.5 |
30 |
30 |
A2F-NPT1-25 |
15-25 |
15-20 |
20-25 |
11 |
≤5.5 |
32 |
36 |
50PCS |
A2F-NPT1-1/4-32 |
20-32 |
20-26 |
26-32 |
11 |
≤5.5 |
35 |
44 |
5PCS |
A2F-NPT1-1/2-42 |
31-42 |
31-35 |
35-42 |
11 |
≤5.5 |
39 |
58 |
A2F-NPT2-54 |
41-54 |
41-54 |
46-54 |
14 |
≤8.5 |
40 |
68 |
A2F-NPT2-1/2-65 |
54-65 |
54-58 |
58-65 |
15 |
≤9.5 |
47 |
81 |
1PCS |
A2F-NPT3-77 |
65-77 |
65-70 |
70-77 |
15 |
≤9.5 |
49 |
96 |
A2F-NPT3-1/2-89 |
77-89 |
77-81 |
81-89 |
20 |
≤13.5 |
50 |
110 |
A2F-NPT4-101 |
89-101 |
89-94 |
94-101 |
20 |
≤13.5 |
59 |
125 |
英制螺纹 G |
A2F-G1/4-8 |
2-8 |
2-5 |
5-8 |
7 |
≤3.5 |
21 |
18 |
100PCS |
A2F-G3/8-11 |
4-11 |
4-7 |
7-11 |
7 |
≤3.5 |
25 |
22 |
A2F-G1/2-14 |
5-14 |
5-9 |
9-14 |
8 |
≤4.5 |
29 |
24 |
A2F-G3/4-20 |
11-20 |
11-16 |
16-20 |
9 |
≤4.5 |
30 |
30 |
A2F-G1-25 |
15-25 |
15-20 |
20-25 |
11 |
≤5.5 |
32 |
36 |
50PCS |
A2F-G1-1/4-32 |
20-32 |
20-26 |
26-32 |
11 |
≤5.5 |
35 |
44 |
5PCS |
A2F-G1-1/2-42 |
31-42 |
31-35 |
35-42 |
11 |
≤5.5 |
39 |
58 |
A2F-G2-54 |
41-54 |
41-54 |
46-54 |
14 |
≤8.5 |
40 |
68 |
A2F-G2-1/2-65 |
54-65 |
54-58 |
58-65 |
15 |
≤9.5 |
47 |
81 |
1PCS |
A2F-G3-77 |
65-77 |
65-70 |
70-77 |
15 |
≤9.5 |
49 |
96 |
A2F-G3-1/2-89 |
77-89 |
77-81 |
81-89 |
20 |
≤13.5 |
50 |
110 |
A2F-G4-101 |
89-101 |
89-94 |
94-101 |
20 |
≤13.5 |
59 |
125 | |
